Camber, Caster, and Toe: Understanding Suspension Geometry
When it comes to tuning your Subaru's suspension, there are few concepts more crucial than camber, caster, and toe. These three elements of suspension geometry are essential for managing tire contact with the road, optimizing handling, and achieving the best performance on the track or during autocross. However, each of these terms refers to different adjustments, each with its unique role in how your car handles.
In today’s blog, we’ll dive deep into camber, caster, and toe, explaining how each affects your Subaru's performance and offering some tips on how to adjust them based on your driving style and goals.
What is Camber?
Camber is the angle of the wheels relative to the ground when viewed from the front or rear of the car. When your wheels tilt inward at the top, you have negative camber; when they tilt outward, it’s positive camber.
Why Camber Matters
The purpose of camber is to optimize the tire's contact patch with the road. Negative camber is often desirable for performance driving, especially in corners. When your Subaru corners, weight shifts to the outside wheels, and negative camber helps keep more of the tire in contact with the pavement. This means more grip, better control, and reduced tire wear during high-speed turns.
- For Autocross or Track: A more aggressive negative camber setting, typically between -2° to -3°, is common to maximize grip and cornering performance.
- For Street Driving: A less aggressive camber, closer to -1°, helps maintain better tire life and comfort while still offering good handling.
Adjusting Camber

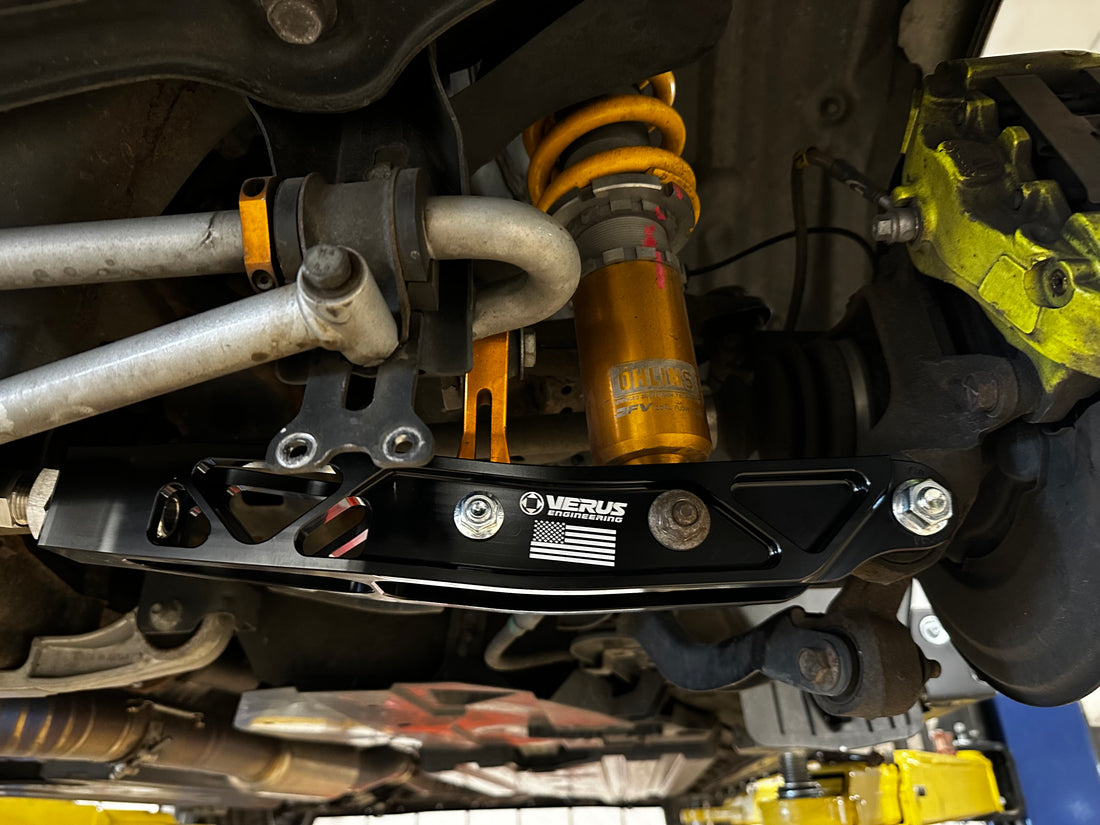

Most coilovers come with camber-adjustable top hats for the front wheels, allowing you to fine-tune your settings without additional modifications. However, if you want to adjust rear camber, especially on models with multi-link rear suspensions like the VA WRX/STI (2015–2021), you may need adjustable control arms or rear camber bolts.
What is Caster?
Caster is the angle of the steering axis when viewed from the side of the car. If the steering axis tilts backward, you have positive caster; if it tilts forward, it’s negative caster. On most performance vehicles, including Subarus, positive caster is used to improve stability and steering feel.
Why Caster Matters
Positive caster offers two main benefits:
- Improved Straight-Line Stability: Positive caster increases stability, making the car feel more planted, especially at high speeds.
- Increased Dynamic Camber: Positive caster also increases camber as you turn the wheel, allowing for better tire contact during cornering without needing an aggressive static camber setting.
Caster for Different Driving Scenarios
- Performance and Autocross: For Subaru models with McPherson strut suspensions, increasing caster can provide better handling and stability in quick transitions and corners.
- Daily Driving: Most vehicles benefit from positive caster, as it promotes a natural self-centering effect in the steering wheel, improving straight-line stability and comfort on highways.
Increasing caster often requires adjustable control arms, as it isn’t as easily adjustable as camber on many Subarus. However, aftermarket suspension setups can help achieve the desired caster angle for more controlled handling.
What is Toe?
Toe refers to the angle at which the wheels point relative to the car’s centerline when viewed from above. Toe-in means the front of the wheels points slightly inward, while toe-out means they point outward.
Why Toe Matters
Toe settings are critical for determining how the car responds to steering inputs:
- Toe-In: Generally provides better straight-line stability and is often used in rear-wheel alignments for daily drivers. It helps keep the car stable at high speeds.
- Toe-Out: Increases the car’s willingness to turn and improves response to initial steering inputs, making it a popular setting for autocross and track use. However, too much toe-out can lead to instability.
Setting Toe for Different Uses
- Autocross: Many drivers prefer a slight toe-out in the front to improve turn-in response during quick maneuvers. Rear toe can vary, but some toe-in can enhance stability during transitions.
- Track: A neutral or slight toe-out in the front helps with cornering, while a slight toe-in in the rear promotes stability.
- Street Driving: For daily driving, a slight toe-in in both front and rear is usually recommended to maintain straight-line stability and prevent excessive tire wear.
Adjusting Toe
Toe is one of the easier alignment settings to adjust, as it can often be fine-tuned without extensive modifications. Most alignment shops can handle toe adjustments, making it a straightforward way to tune your handling balance.
Combining Camber, Caster, and Toe for Performance
Each of these settings plays a unique role, but they also work together to create the overall handling characteristics of your Subaru. For example:
- Aggressive Camber and Positive Caster: For maximum cornering grip, running negative camber with positive caster can keep your tires planted through turns while maintaining stability.
- Toe Adjustments for Fast Response: Adding a slight toe-out in the front can enhance turn-in, while a touch of toe-in at the rear can give you more stability.
Experimenting with combinations of camber, caster, and toe will help you find the ideal setup for your driving style and needs.
Conclusion
Suspension geometry can be complex, but understanding camber, caster, and toe is essential for unlocking the full handling potential of your Subaru. By making precise adjustments to these alignment settings, you can tailor your car’s handling to suit your driving style, whether you're aiming for better lap times on the track or looking to master quick transitions in autocross.
Stay tuned for next week’s Grip Guide, where we’ll dive into The Perfect Daily Driver Suspension and explore how to balance comfort and performance for an optimized daily driving experience with your Subaru!
