ACT

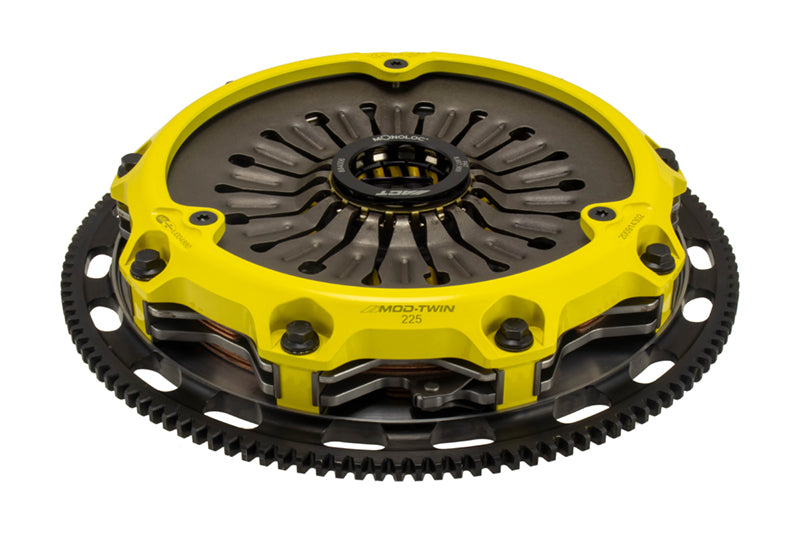

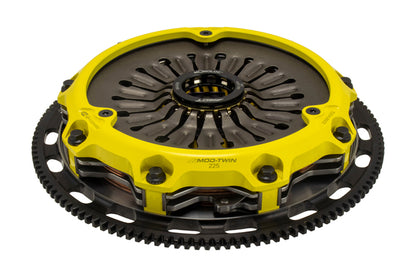

ACT 04-20 WRX STI Mod Twin XT Race Kit Sprung Hub Torque Cap 1120ft/lbs Not For Street Use
ACT 04-20 WRX STI Mod Twin XT Race Kit Sprung Hub Torque Cap 1120ft/lbs Not For Street Use
SKU:ACTT2R-S05
Regular price
$1,656.90 USD
Regular price
$2,360.00 USD
Sale price
$1,656.90 USD
Unit price
per
Couldn't load pickup availability

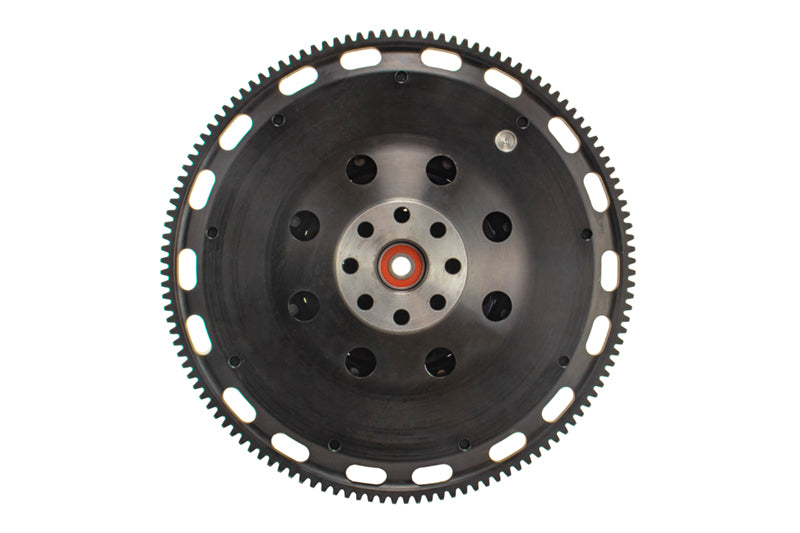

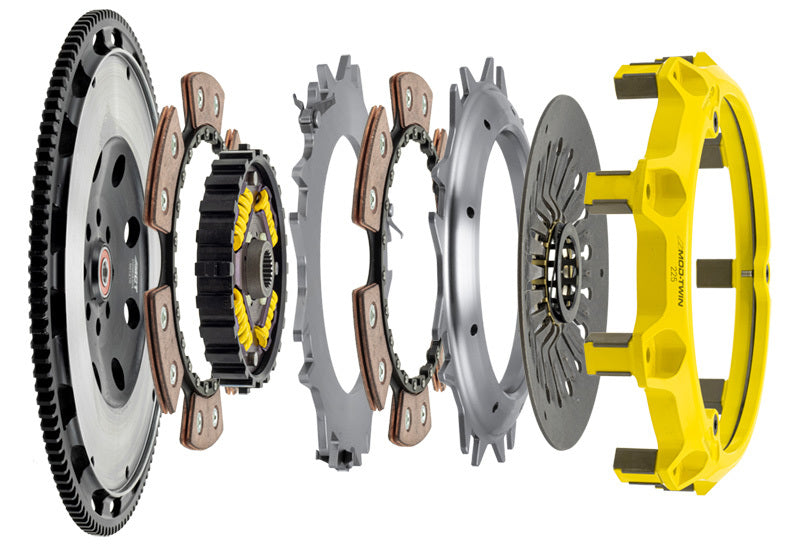

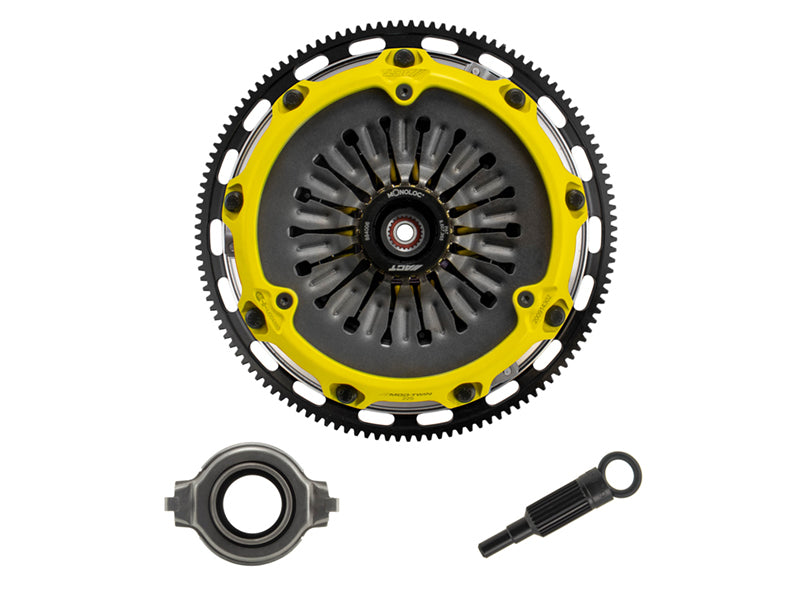

T2R-S05 Mod-Twin 225 XT Sprung Race Kit performs aggressive launches and smoother shifting in high powered AWDs by combining twice the ceramic friction surfaces with an ultra-durable Mono-Drive sprung hub assembly in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process providing a consistent light pedal feel. Puck-style Friction Plates with high quality ceramic friction materials deliver high friction coefficient, superior heat capacity, and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive sprung hub assembly which extends input shaft life and reduces driveline shock from torsional vibration. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, sprung Mono-Drive hub assembly, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.
This Part Fits:
View full details
This Part Fits:
Year | Make | Model | Submodel |
---|---|---|---|
2004-2014 | Subaru | Impreza | WRX STI |
2007,2011-2014 | Subaru | Impreza | WRX STI Limited |
2010 | Subaru | Impreza | WRX STI Special Edition |
2015-2021 | Subaru | WRX STI | Base |
2015 | Subaru | WRX STI | Launch Edition |
2015-2021 | Subaru | WRX STI | Limited |
2020 | Subaru | WRX STI | S209 |
2016 | Subaru | WRX STI | Series.HyperBlue |
2018 | Subaru | WRX STI | Type RA |
